SJ Deep well underwater 300m inspection Camera with 90mm PTZ camera

Shenzhen Zhimin Technology Co., Ltd. was established in 2018 and is located in Shenzhen. The main products include pipeline detection cameras, camera locators, pipeline cleaning and dredging equipment and other tools. All products are Compliant with FCC, CE and RoHS and WEEE requirements.

Send Inquiry

Description

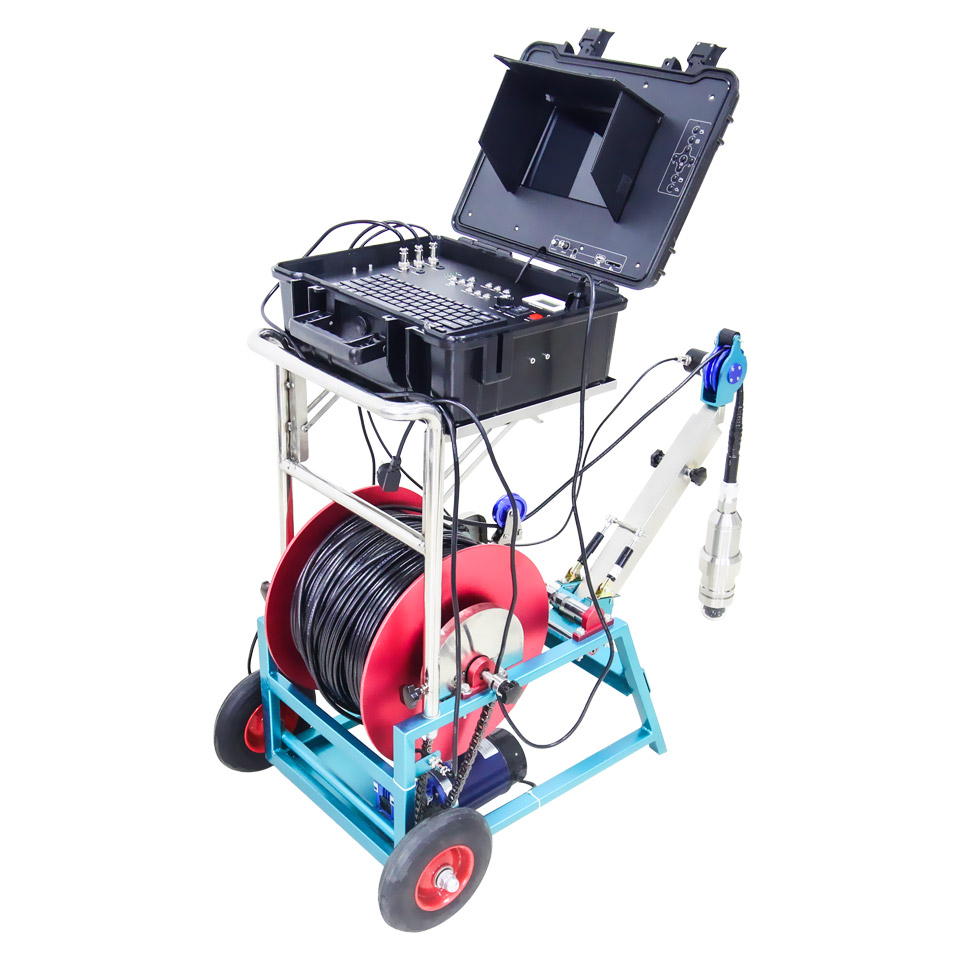

Deep Well Camera: ZM-R1
Control case	ABS case,220V/12V input

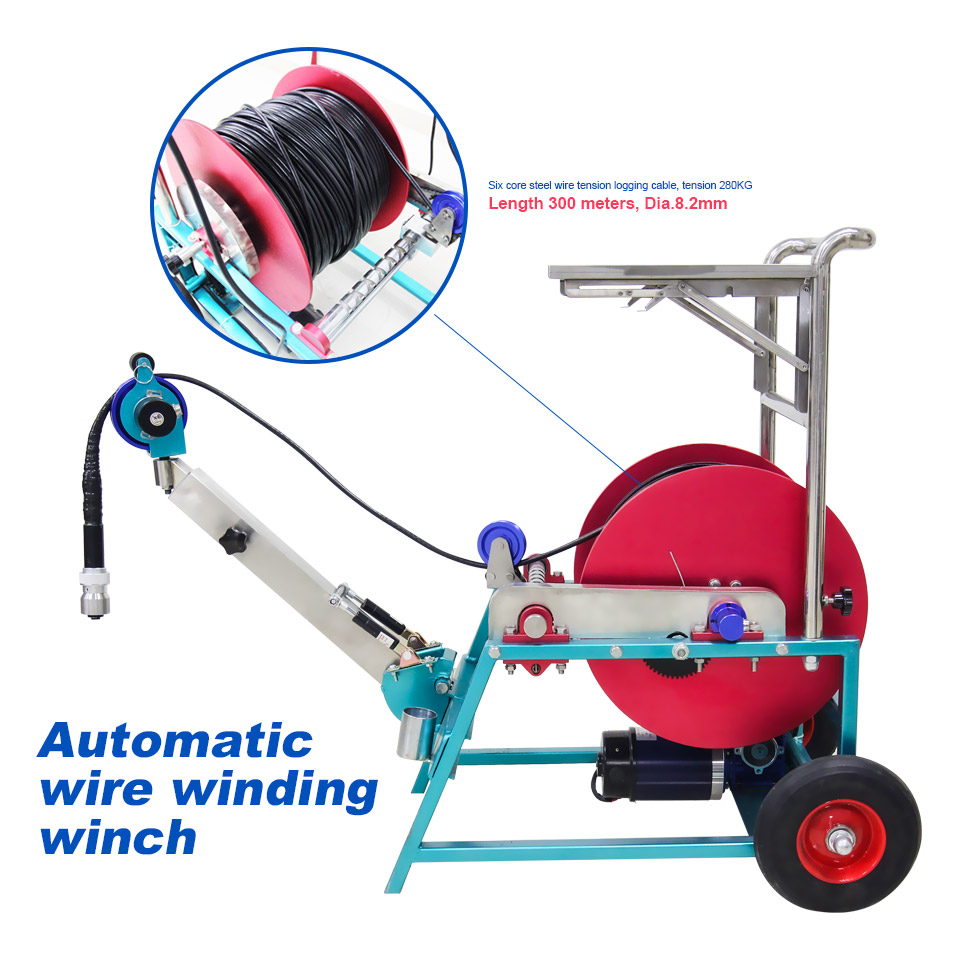

Electric winch	Electric & Manual winch
Monitor	10" display
Control and DVR part	Take video and photo function Control camera’s rotation, lighting and focus range Control the height and speed of cable and camera Real time depth display Playback videos and photos

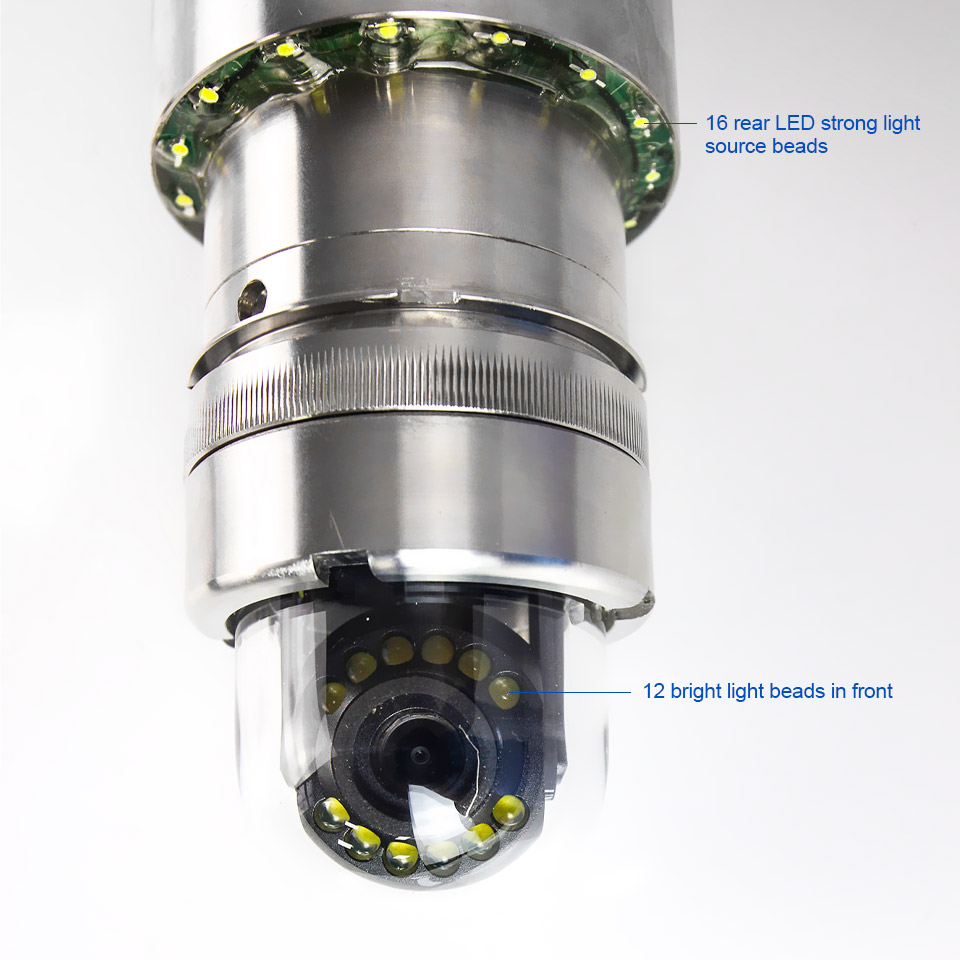

φ75mm Dual Camera Head	φ75mm dual camera head, one 360 degree rotation side view camera, one down view panoramic camera, LED & side view camera focus is adjustable.
Meter counter	Depth accurate to 0.005 meters
Cable	φ7.8mm polyethylene cable (100m-800m optional)
Centralizer	Highly elastic stainless steel
12V power input	Accumulator battery powered function (available within 600 meters)
Tool case	Put camera head and spare parts

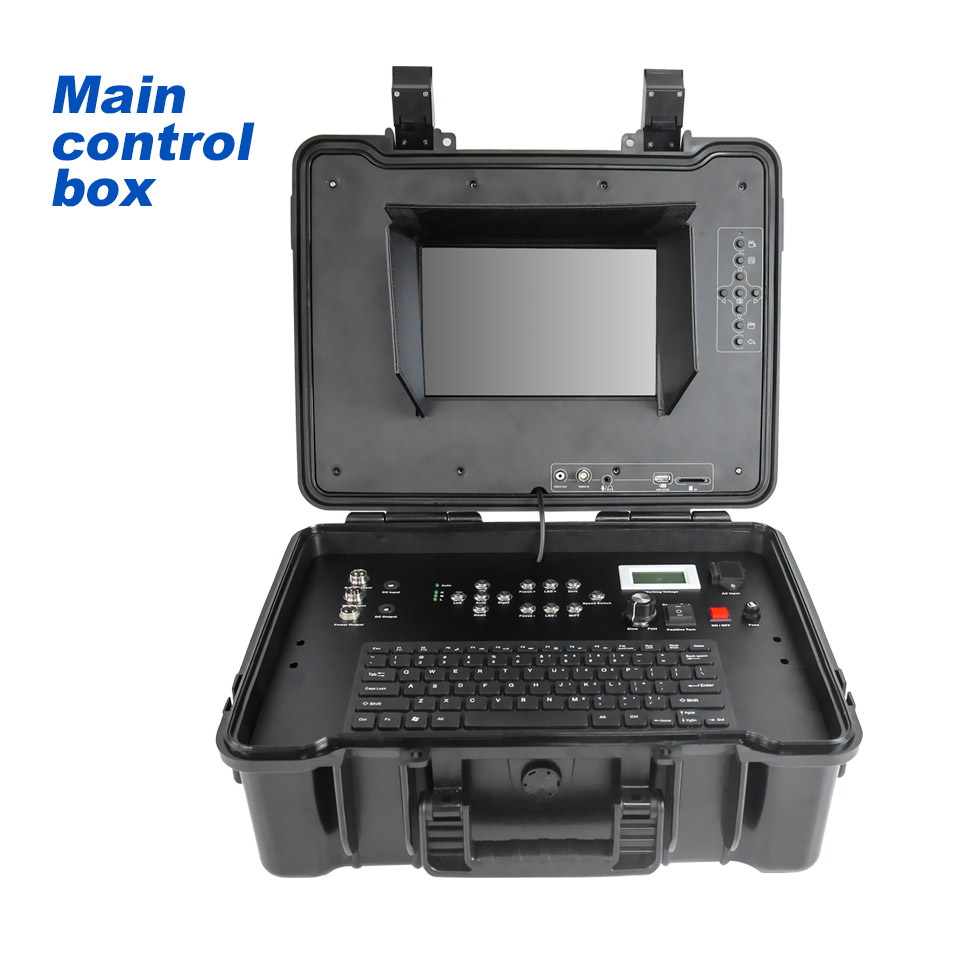

* ABS control case * Input voltage: 220V/12V * Depth Interface: Connect depth sensor * Camera head Interface: Connect the camera head, transmit video and power * Data Interface: Record the wells numbers and places auto. Self-calibration depth * HD DVR Video record * Video storage Medium: 16G SD card(Max 32G) * Depth reset * Depth real time display * Monitor: 10”monitor. With sunshade * Control the height and speed of cable and camera *12V power input: Accumulator battery powered function (available within 600 meters)
